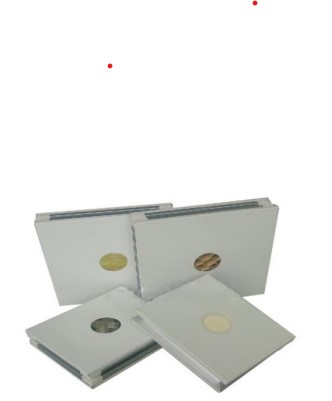

Clean Room Modular Wall & Ceiling Panel

We design the series of cleanroom Wall & ceiling Panel stems for the most stringent medical research and aspetic process applications. Our modular cleanroom of choice is used in Biomed, Life science, Medical device, Pharmaceutical proocessing. Our Modular Wall and ceiling systems offer significant performance advantages over tradiational clean facility solutions.

• Material : G.I (Pre coated / Powder coated) , SS 304 , Aluminum Powder coated)

• Frame : G.I / Aluminum

• Sheet Thickness : 0.5 , 0.6 , 0.8 mm

• Panel Thickness : 30 , 50 , 80 , 100 mm

• Infill Material : Puff / Paper Honey Comb / Aluminum Honey Comb / Rock

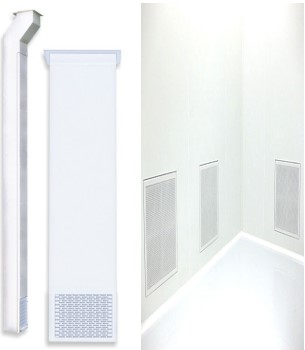

Clean Room Wall Riser Panel

More precisely known as return air risers, which are used to collect the return air in a specific manner to maintain a perfect laminar flow.

• Application : They find a wide application in harmaceuticals and clean room industry where proper class of cleanliness is to be maintained.

• Construction : Return air risers are manufactured in the factory as per the design requirement. They are constructed in G.I/S.S or anodized aluminum & then powder coated for better aesthetic looks.

• Additional Features : Prefilters along with front removable.accesible door can be provided as per requirement.

• Any other accessories as per requirement can be provided

Clean Room View Panel

• Material : G.I Sheet

• Sheet Thickness : 1 mm

• Size : Width : 500 to 1200 mm / Height : 500 to 1200 mm / Depth : 50 to 300 mm

• Glass : Float Glass / Toughened Glass / Frosted Glass Glass Thickness : 6 to 8 mm

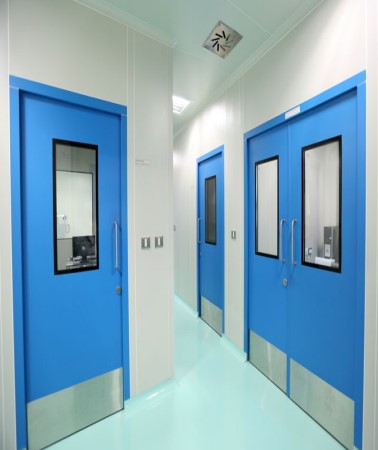

Clean Room Door

• Material : CRCA Powder Coated / S.S 304 / Aluminum

• Frame Thickness : 50 , 80 , & 100 mm

• Sheet Thickness : 1.2 mm

• Finish : Powder Coated Matt Finish

• Shutter Thickness : 45 mm

• Sheet Thickness : 0.8 mm

• Finish : Powder Coated matt finish

• Infill Material : Puff , Paper Honey Comb , Aluminum Honey Comb, Rockwool.

• Hinge : S.S 304 Ball Bearing Hinge

• Handel : S.S 304 “D” Handle

• Door Closer : TS-68 Std/Hold Open Arm

• Drop Seal : Aluminum Cat-5

• Gasket : Silicon

• Lock : Mortise Lock with 70mm Cylinder

• View Panel : Std 350 x 700 mm

• Push & Kick Pleat : S.S 304
